ILI9163c

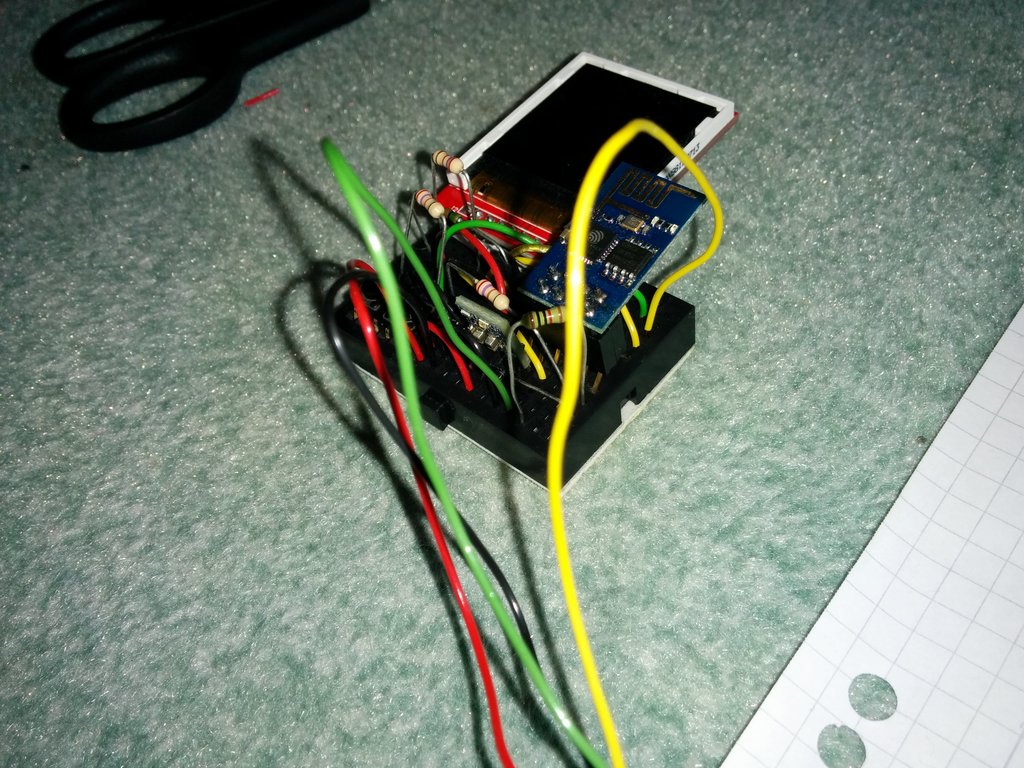

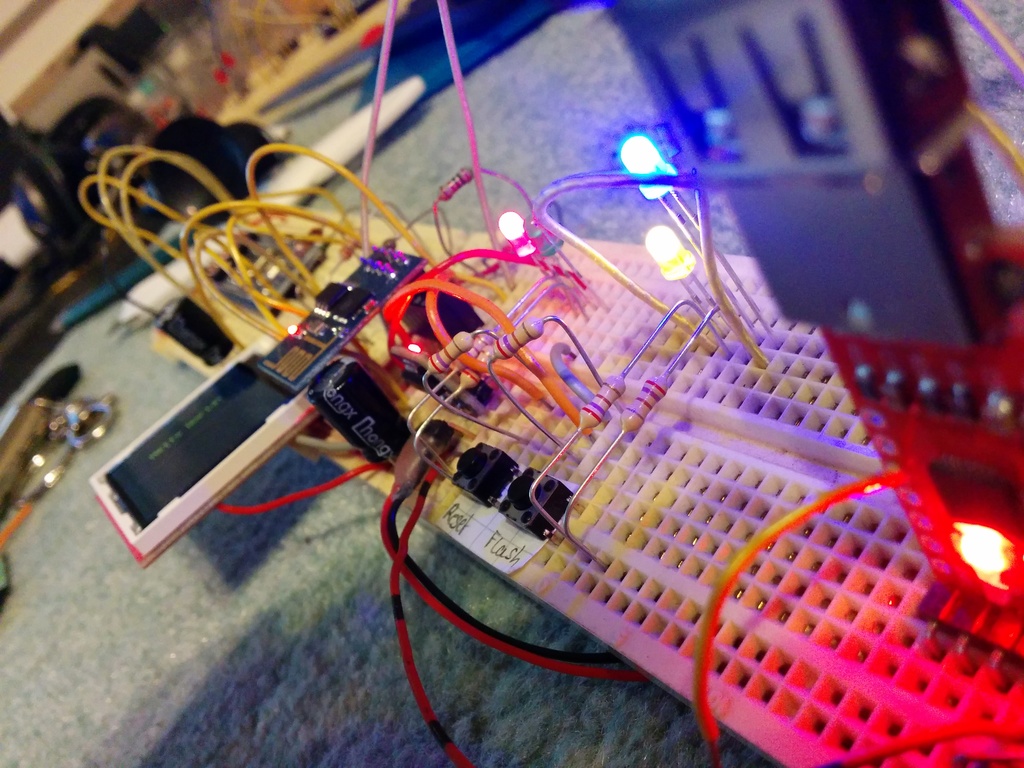

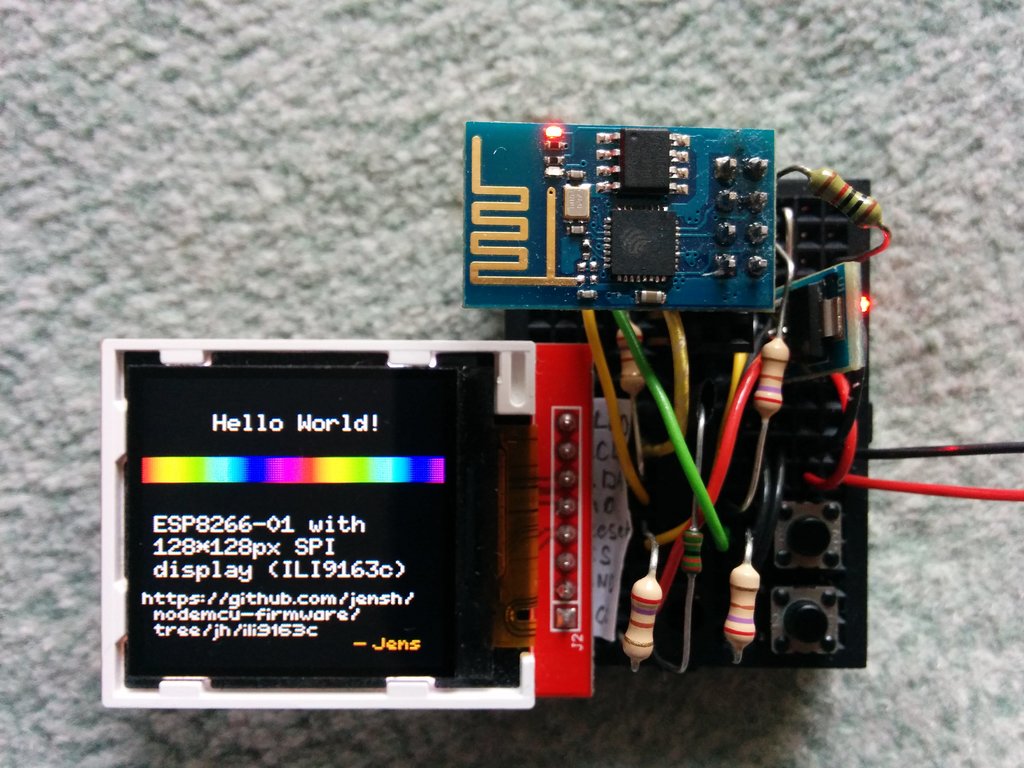

ESP8266 powering a 128x128 1.44' color display over SPI. As the #ILI9163c controller require 4 IO Pins (SCK, SDA, A0 and CS), i have used in addition to GPIO0 and GPIO2 also the TXD and RXD Pins of the ESP-01 module. Flashed with an extended nodemcu-firmware, this thing is connected to the internet via wifi and programmable in lua. The u8glib driver for the ILI9163c is available on https://github.com/jensh/nodemcu-firmware/tree/jh/ili9163c.

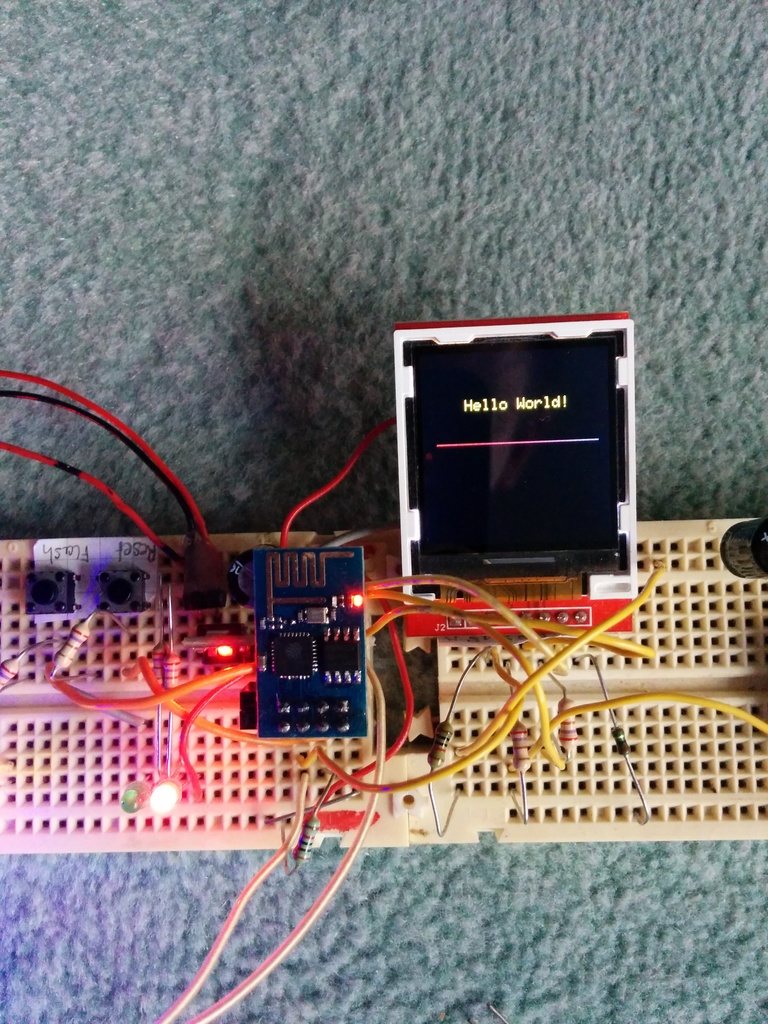

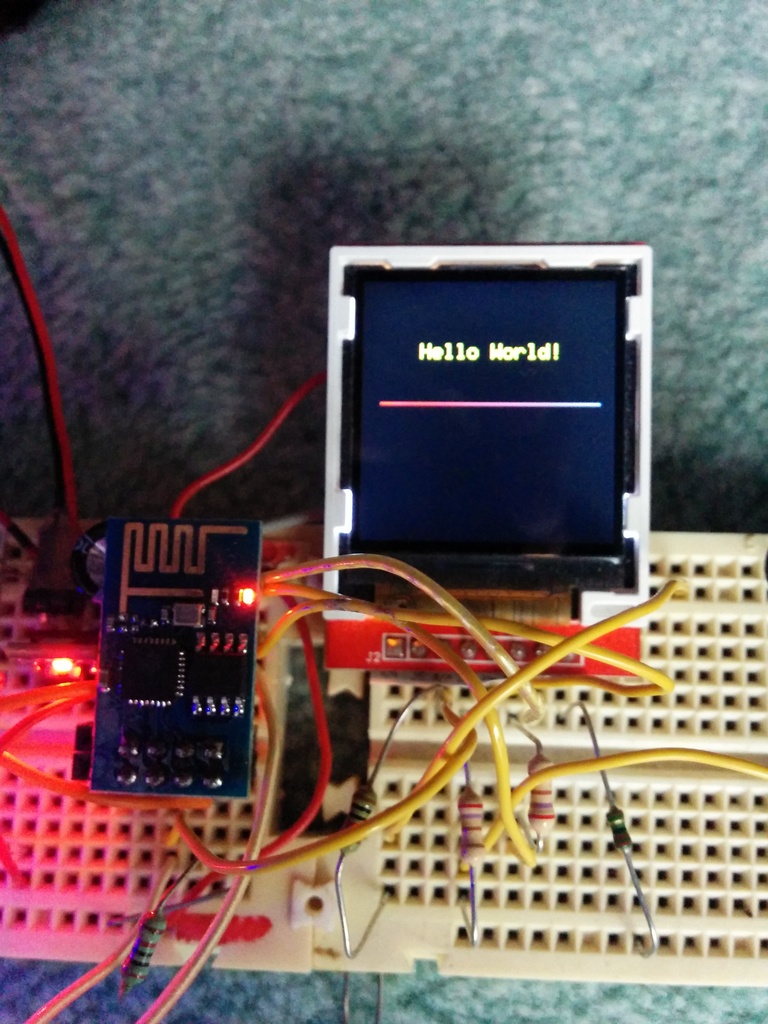

Hello World!

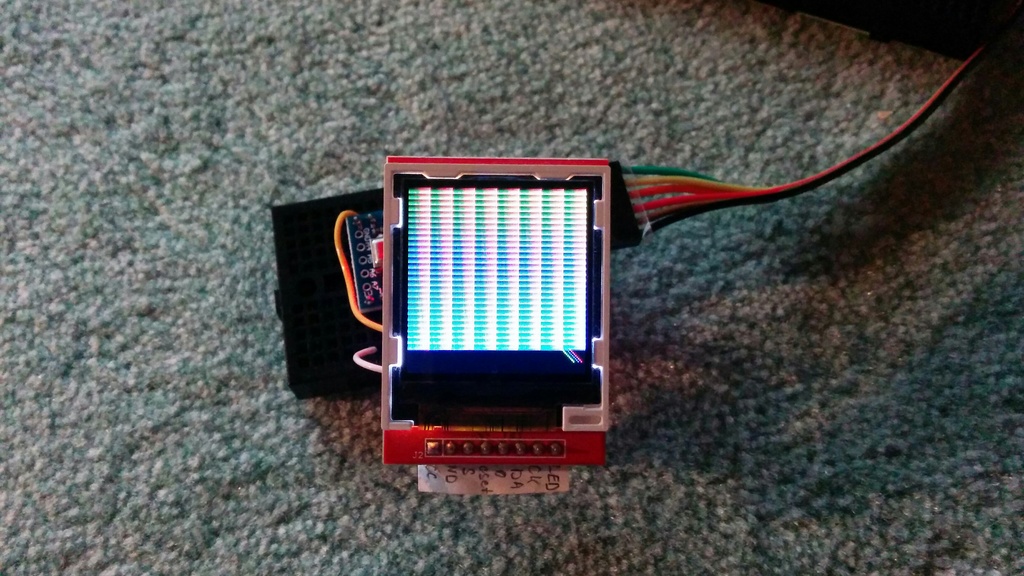

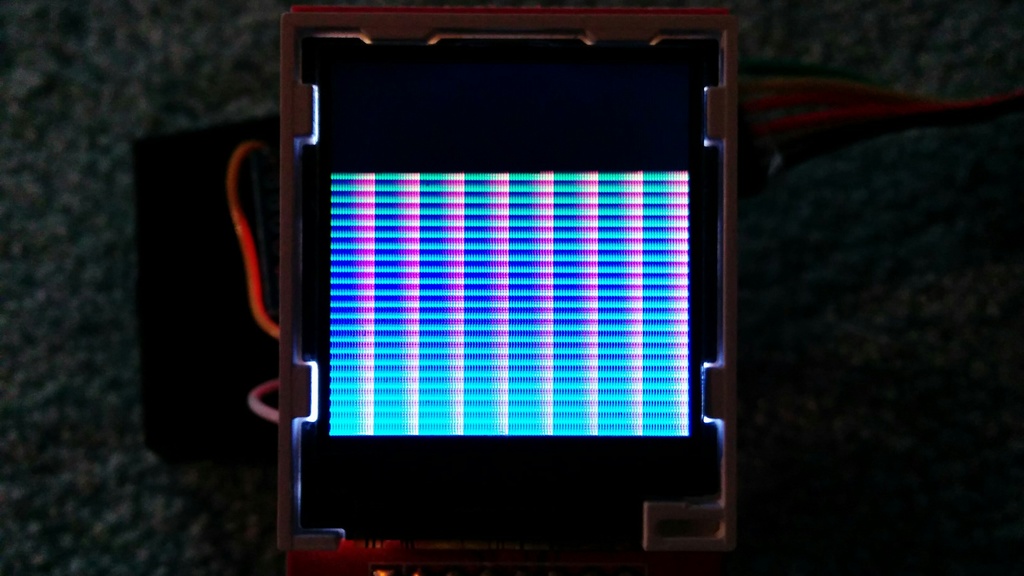

Color test pattern
